Armada 2

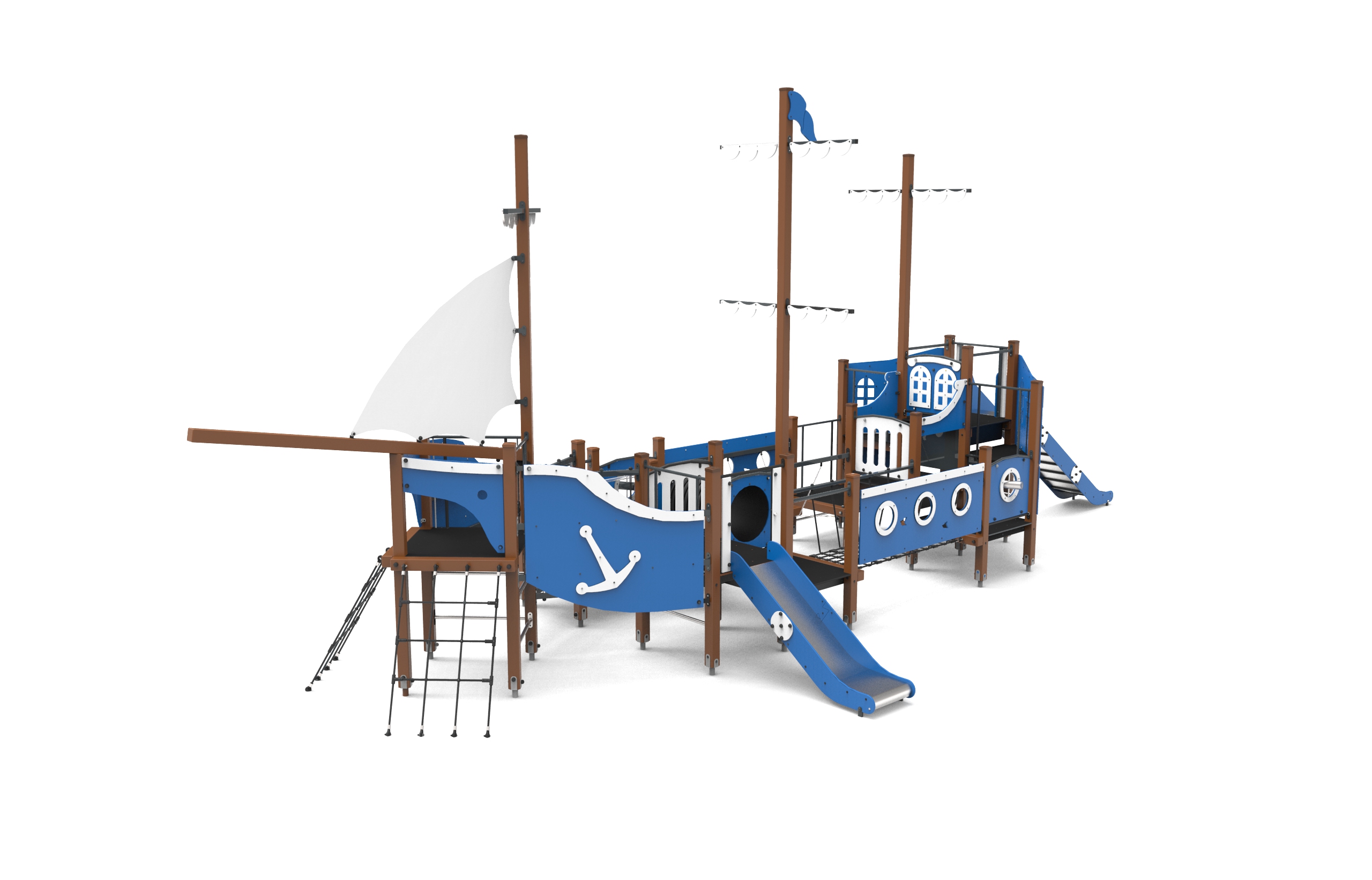

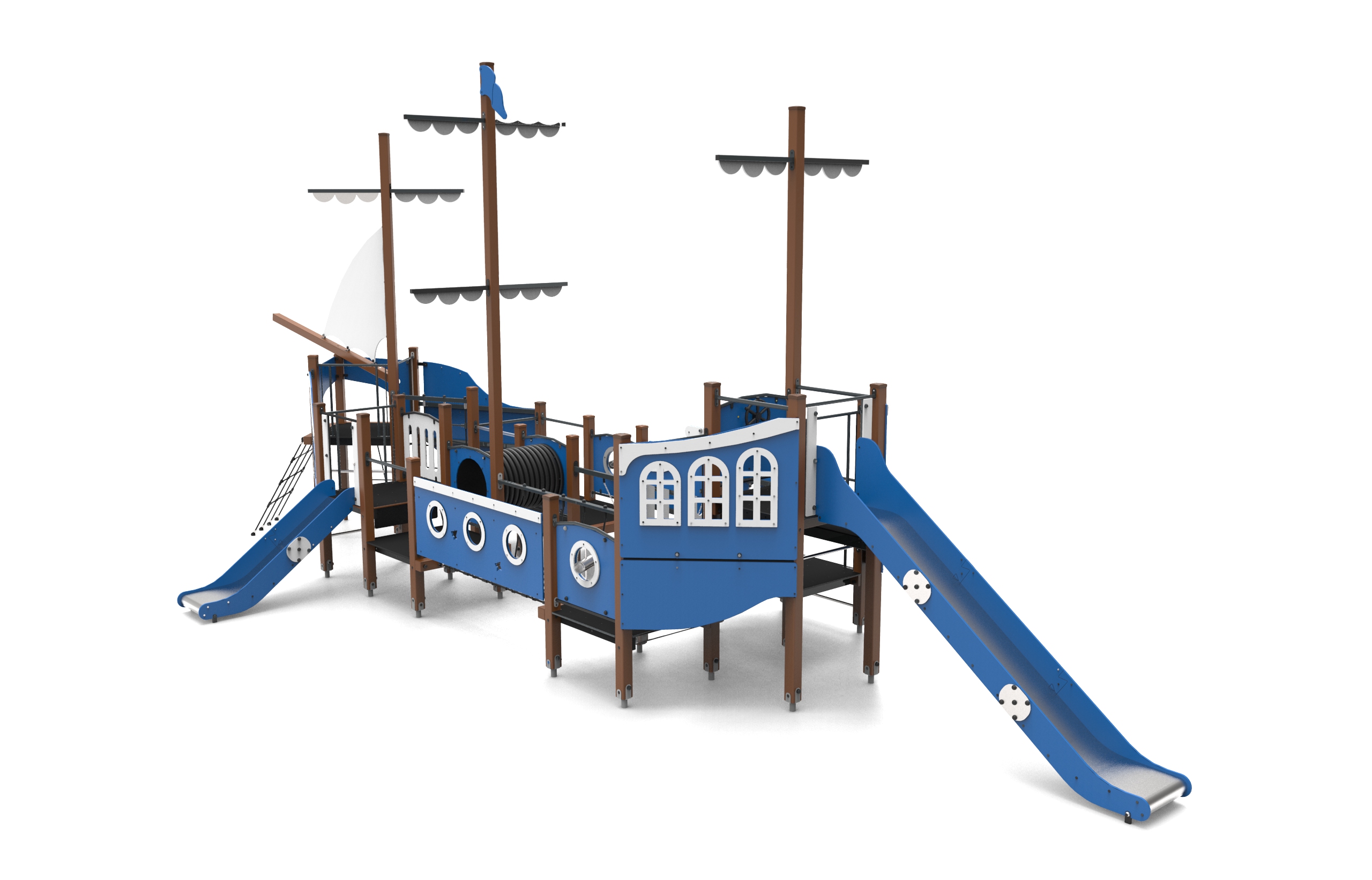

The device in the form of a ship with masts, on wooden poles of square cross-section. Platforms covered with non-slip coating, railings reinforced with steel tubes at the top and bottom. Tapers made of welded steel tubes.
Product code
0280076
Age group
3-12 years
Number of users
32
Inclusiveness
No
Length
12,27 m
Width
4,28 m
Height
5,00 m
Area of the safe zone
76,33 m2
Fall height
1,50 m m

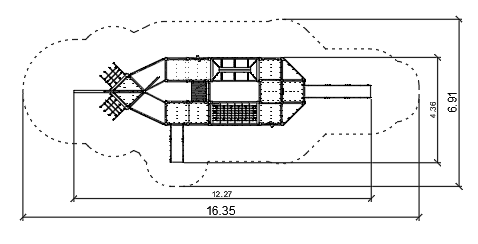

Zone dimension
15,77 x 7,78 m m
Material specifications:
| Construction | made of glued timber, surface impregnated, with a square cross-section of 95 x 95 mm |
|---|---|
| Additional handrail | black steel galvanized and then powder coated or stainless steel |
| Platforms | plywood or HPL boards |
| Foundations | dug into the ground to the specified depth and concreted with concrete of min. B-20 or bolted to a concrete base |
| Plates | HDPE boards with milled drawings |
| Slides | stainless steel, tubular, tube or with HDPE sides |
| Other | Screws made of stainless steel with polyamide caps. Climbing stones made of durable plastic. Louvers made of polycarbonate. Tunnel made of double-walled pipe made of polypropylene. Fireman’s slides made of stainless steel. |
